JDOliver

Still have almost all of a black leather Conquest interior in my garage attic. Cant bring myself to throw it away with people still out there restoring. Almost perfect. Front seats gone. Dash, excellent as well as headliner and other. Wiring etc.

Send me a message if you are interested in coming ...

JDOliver

Jumped on here for a little update. When prepping this car for suspension work I found some serious subframe and overall alignment issues that I couldn't work around. I saved the interior for someone looking to restore one due to the very good conditon.

Fortunately the little bit of money I have ...

JDOliver

That is fantastic.

JDOliver

Some manufacturers are notorious for building transmissions with special parts the become NLA within a few years.

Getrag was the manufacturer I was mostly referring to.

JDOliver

I can't find any good info on that transmission on the manufacturer. Some manufacturers are notorious for building transmissions with special parts the become NLA within a few years.

An innovative person could take on of Bills adapters, throw a plate adapter on the transmission side and run about ...

JDOliver

There is a lot of discussion on the Evo vs. 1G head and flow. Personally I think most of the discussion becomes mute once you start adding boost, but that's just my theory.

The bigger issues with deciding on the head relates to the intake side and where you want your fuel injectors. The 1G are ...

JDOliver

bump for new people

JDOliver

"Electric water pump." Could you send me or post up the info here please. I really could use that. Thanks.

JDOliver

You need to see them and measure to be sure on any of them. There where so many variations, split dates, and manufacturers using up what they had, that you can never be sure during that time period.

JDOliver

I will be using a W-58. The R-154 length vs. W-58 vs. T-56 is already covered in a thread on this forum in detail.

JDOliver

I run a unmodified block and head(1g on both). I run a -12an line in where the water pump would be with a -12an exiting out the front of the head. I have another -6an line coming out the back of the head. I run two different temp senors in the back of the cylinder head. The car runs great, I havent ...

JDOliver

The page you are looking at may not have this statement, some that I've looked at do not.

"Crank Trigger Sensor to Replace the Crank Signal Portion of the factory CAS. A Cam/TDC signal is still required (like a 2g or EVO). Allows easy intake cam adjustments and supplies a more stable trigger signal ...

JDOliver

I just looked at the instructions on the Kiggly Crank Trigger and it is not what you are after. It use it to supplement the CAS on the head for the AEM standalone computers.

I am guessing you want to remove the rear Cam Angle Sensor entirely for space. Some have used parts from other 4g63s that ...

JDOliver

Several have cut the intake flange off the normal side and welded it on the other. I had several so just cut one off an intake I wasn't using.

JDOliver

Thought I would post a few pictures. I'm good at taking them but bad about organizing. Picked up my flywheel from the machinest $30 and clutch set for an 87 toyota pickup this week $80. The supra kit has a slighty larger disk but the exact same pilot and throwout for $160. The pickup disk is just ...

JDOliver

If you can't get it forward there's only a few things that could stop it. Too long an input shaft which you experienced before, shaft not seating all the way in/too long/ or splines too short to let it, interior bell housing interference with the pressure plate, arm, or throwout bearing. Could be ...

JDOliver

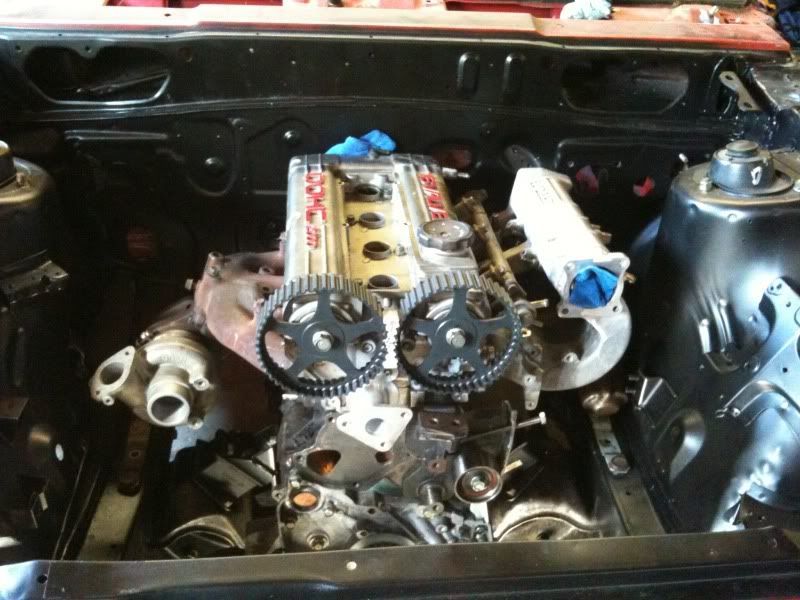

Here's mine in a conquest with the engine back a little too far. The turbo has been rotated opposite of the original position and housings clocked. There is plenty of room on my lefthand drive car. In a righthand there would be a problem with the steering parts. If it's going in that Sigma you may ...

JDOliver

What kind of space on the passenger side of the engine do you have for a turbo? Got a picture of that? Good project, look forward to seeing more.

JDOliver

Been waiting on someone to do this. I'm thinking of a street car like this. Looks great.

JDOliver

Thanks. That actually helps me out also because I'm trying to figure out which ones in my garage need to go to the machinest.

JDOliver

The FWD and RWD flywheels must be different sizes if Bill Hincher modifies his adapters based on which you plan to use.

It occurs to me that the one you would need would be which ever came from the 7 bolt wide blocks in the 2wd trucks since you are re-creating the setup from the 2wd truck but with ...

JDOliver

Is anyone doing any research on using these? I have a guy local that is replacing his EVO8 block with one of the 4G69 2.4 blocks for the bump in displacement. He is telling me that it is more or less a bored out 4G63 so you don't get the block height and accessories issues of the 4G64. Considering ...

JDOliver

Too bad. I was kinda interested in this. It would make a great daily driver.

JDOliver

Are you going to beef up the frame and body??

I helped a friend pick one of these up and turn it over for frame work last year. It was all of 350lbs or so of metal body and frame. It looked like he needed to build a good frame and put the body on top of it to me.

JDOliver

I've heard they take a while to register people. You should be able to view regardless. I can view when I'm not signed in.

JDOliver

I am thinking one of the Jay Racing long outlets if it will get by the water pump pulley and using an external thermostat that I have sitting around. I'll probably pull out a volvo coolant bottle and use a volvo sealed radiator. That puts the air escape as high as you can get the top of the bottle ...

JDOliver

Someone is parting a car and has individual stuff all over ebay at the moment, or try starquestclub.com

JDOliver

Thanks, I thought that might be how. I have the same stuff around so I'll give it a try.

JDOliver

A little update. Got tired of trying to deal with the effects of trying to use the Mighty Max water pump and picked up a stock one. For those that haven't tried, it pushed the pulley further out, created a lot more work in getting the engine cover back on, and generaly created as many problems as ...

JDOliver

What did you do to get the alternator on that side?

JDOliver

The W58 was also in earlier years of the supra and later year of other cars. I'm wondering if there's something he likes better about those years, like length of the shifter housing.

JDOliver

JAYFRESH, why those particular years ?

JDOliver

Welcome. Good luck on the purchase. Just a small hint about the questions, if you ask one and no one answers don't get irritated. It is either been answered a million times, is plain as day, or everyone's busy working on things in the garage.

JDOliver

There's someone that makes a bypass hose already. You may be able to find one over at starquestclub.com

JDOliver

Entered the turn a little fast(or drifting), overcorrected the oversteer to the right, car turned back hard left, small slide off in the grass, things are looking good, OOOOH SH, that's a concrete drain abuttment(see the floorpan, then picture), smash and flip?

That sucks. I've thought of how a car ...

JDOliver

My project has its origins in the current owner of Chrysler, FIAT.
After a couple of years autocrossing and local rallies in my FIAT Spider I realized that major upgrades where needed. I was in the market for an I.R.S., some wheels, a turbo, and a roll bar. A friend had just bought a Conquest for ...

JDOliver

Sorry, I was very busy with travel last year and haven't been around much.
The car will get to the track this year no matter what. I'll start a build thread, finally.

JDOliver

Theres 26 inches between the frame rail horns. Maybe a 1/2 more as one of mine is a little tweeked.

JDOliver

I wasn't paying enough attention last time on this thread.

What I will be doing is taking the plate that DJ modified and cutting slots in it to make the trigger wheel for my Megasquirt install. Then putting the pickup like his. All it takes is a file and some aluminum bar. When I did the install ...

JDOliver

I sent DJ a PM a few days ago, but if I remember correctly, he was headed out for some type of excursion for a while. There is one other listed moderator but I haven't seen a way to get in touch with him.

Looks like we will just have to wait it out for now.

JDOliver

I don't believe I've ever seen a sight get so hammered. Crazy.

JDOliver

This has just happen in the last few months. It was never like this before. Maybe we can get an administrator or two added ?

JDOliver

You have been given the information based on knowledge available from persons on this site.

I am sure you have been looking through the site and found that there are no RX7 swaps on here as of yet. It looks like it is up to you to be the first to potentialy share that information here.

If ...

JDOliver

He says carbs up in the 1st post for fuel.

Can you still get MegaJolt? I don't recall seeing them anywhere in the last several years. You have to have a computer to run the Ford EDIS. Worst case drop $130 on the cheapest megasquirt and only hook up ignition.

JDOliver

Thanks. I just noticed the Mookeeh pulleys for the 54b have a steel toothed wheel on the aluminum pulley. I missed that before but since the pickups are magnetic it makes sense.

JDOliver

The insulation is what I was most interested in. I've removed all the wiring from mine already. The insulation is pretty well stuck down in mine.

What was the tool you used to cut the brackets out of the engine bay? That and filling holes is next on my list. Thanks for the info.

JDOliver

Where's the wheel you are using that crank sensor mount with ??? I am needing to do the same.

JDOliver

How did you get the floor of the car cleaned up ?

JDOliver

The non forum project zero g page specifies 6mm offset pins. They would be offset further up to account for the long stroke crank. If you google 2.3 4g63 stroker I am sure you can find the pistons for sale and exact numbers. The 4g63 stroker seems to be pretty common these days.

JDOliver

You need to put some serious thought into the front and rear suspension for HP like that. There will have to be a lot of weight transfer to be able to get any traction at all in it. Be sure to post racing picks and good luck.
