confused...what gearbox

nmb1022 · Post by **nmb1022** » Tue Sep 01, 2009 4:08 pm

I have been reading on this site to find info for my new project, but i still can't figure it all out

I have bought a 2006 lancer evo fq340 engine and need to convert it to rwd. From what i figure it should be a narrowblock. If it is a narrowblock will any transmission (with 4g63) from a starion fit? I would prefer to use the fq flywheel/clutch/starter since i already have it

anyone who can give some input for my winterproject

By the way it's for my Toyota Starlet kp60

S0LJAH · Post by **S0LJAH** » Wed Sep 02, 2009 2:07 am

good luck

i havent heard of anyone with that new an engine going rwd
there a different kettle of fish to the older 4g63s mostly talked about on here

hopefully someone can pipe up with some info

Bill Hincher · Post by **Bill Hincher** » Wed Sep 02, 2009 10:01 am

The EVO flywheel is 11 1/2 inch and the bolt pattern is different then the 4G63, the lower main bolt on the axle side is raised up about 14mm

nmb1022 · Post by **nmb1022** » Thu Sep 03, 2009 5:10 am

ok I see I have to work a little on making a box fit on the evo engine unless Bill is cooking some up for the Evo engine??

But problems are here to be solved and the world needs a Dragstarlet with an Evo engine

92 GSR-4 · Post by **92 GSR-4** » Thu Sep 03, 2009 9:28 am

Evo's came with both the FQ340 and new-style 4G63, right?

Bill are you taking measurements from and EVO 4G63? I wonder if the dimensions are all the same.

Bill Hincher · Post by **Bill Hincher** » Thu Sep 03, 2009 10:22 am

I dont know for sure either,
it may be that the bolt pattern is completely different in european models for that matter, I showed him what I have and its up to them to show us what the are dealing with now

nmb1022 · Post by **nmb1022** » Thu Sep 03, 2009 11:06 am

haven't pulled the engine out of the car yet. But will do some reserch to try to figure out the bolt pattern

then i can snap some pictures of the engine of Europes fastest Evo at the same time

nmb1022 · Post by **nmb1022** » Fri Sep 11, 2009 9:17 am

the FQ engine is out of the Evo now, but forgot the camera

But hope to take some this weekend

Bill> From what i can read in your other threads it looks like you make adaptors for this engine

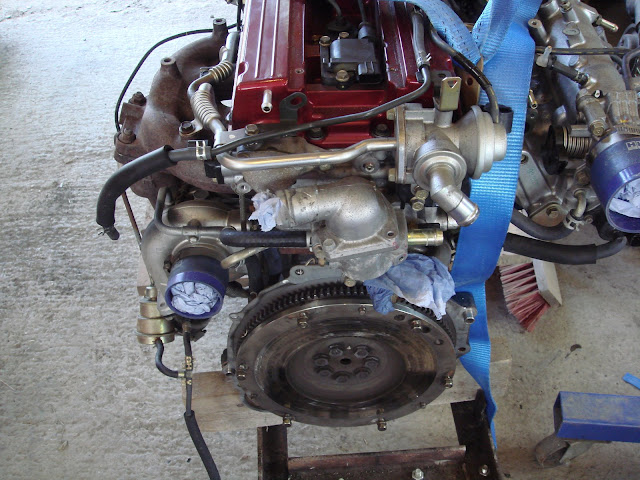

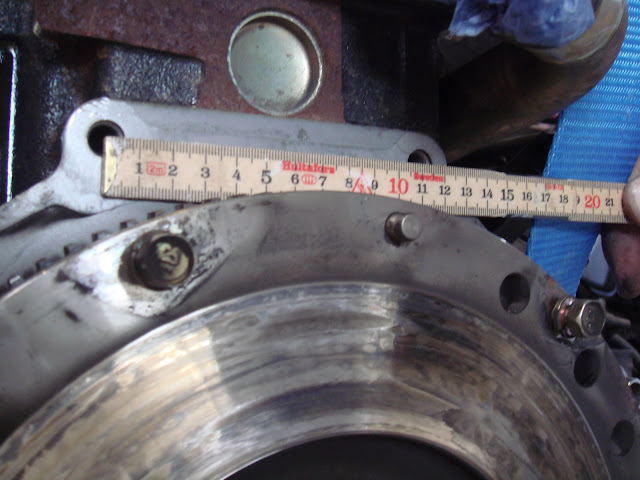

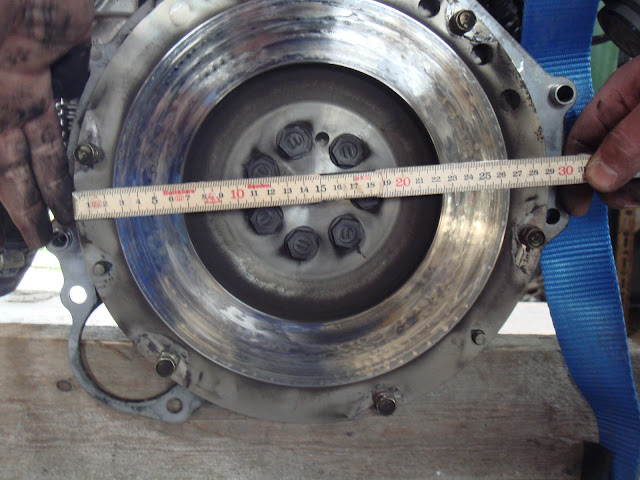

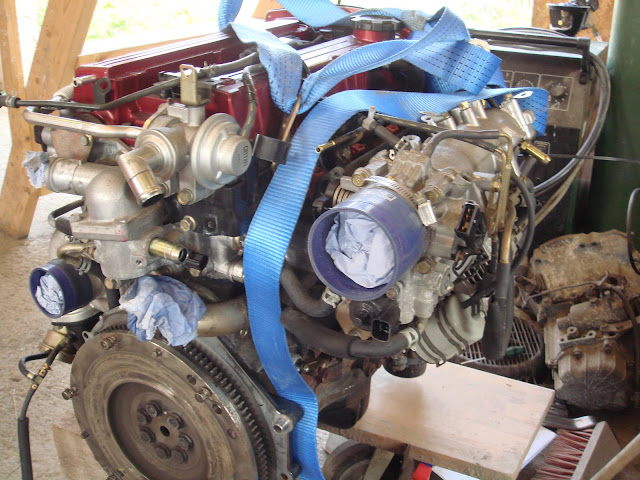

nmb1022 · Post by **nmb1022** » Fri Sep 18, 2009 3:45 pm

Looks like I can use some of Bill briliant work if i move the turbo, but that is a minor problem

Bill Hincher · Post by **Bill Hincher** » Sat Sep 19, 2009 11:04 am

yeah, thats an EVO bolt pattern, my R 154 will fit that but you gotta run the AWD second gen flywheel and use apush style clutch

nmb1022 · Post by **nmb1022** » Sat Sep 19, 2009 12:01 pm

what gen. flywheel is mine?? is it too big or what is the problem with it? It would be great to use my own flywheel and just change the clutch

Don't know what clutch I want to use, but i'll make sure it is a push.

But how do i order the bellhouse from you? i'm proberly in the USA sometime early next year, but i can't wait that long

Bill Hincher · Post by **Bill Hincher** » Sat Sep 19, 2009 12:17 pm

I have shipped all over the world, it is not a problem, it costs abot $130.00 USd to denmark

The EVO flywheel was too large to fit my housings, and many members wanted the smaller diameter flywheel, so I built the housing around the smaller diameter flywheel

the clutch on the EVO's were a 'pull' style clutch, many options are available for the 'push' style clutch, so I used that to our advantage by installing clutch controls for the push style
