Tight Fit

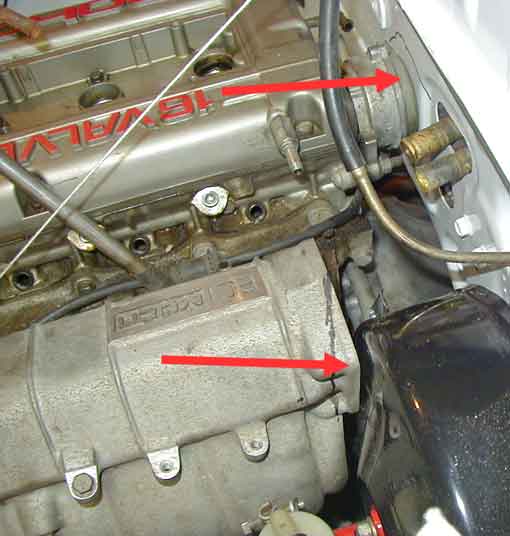

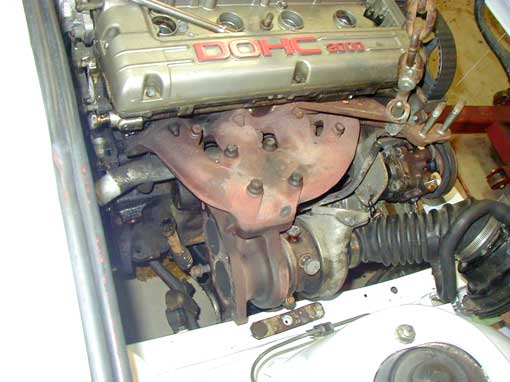

This page shoes how the motor will sit in the car if you use the stock mounting positions.




This is how close to the firewall and brake booster things will be.  I also would have had trouble with the water neck.  Heck.  I'd have to take the motor out to remove the intake manifold, CAS sensor or thermostat!  It's just too much.  And that is when it is sitting nice and still in there.  Torquing around in there and being slung around corners on race tires would put the aforementioned stuff into some equally expensive stuff.  Not cool.

Because of all of this, I have decided to move the motor forward 2".  Moving it forward involves extending the driveshaft 2 inches and making adapter plates for the motor mounts.  See the adapter plates on The Motor Section
