::Project 0G::

Drift Car

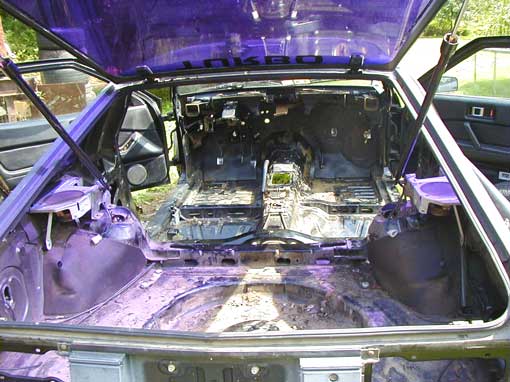

Matt and I started getting bored and we had this nice $100 parts car to play with.  So it began.  In late August I started gutting the parts car.  The goal is to use what we learned doing the original 4G63 swap to put together a no compromises full race / rally / drift car.

The plan is to put together a 2.4L wideblock motor mated to a Starion transmission over the winter, hopefully with the help of some sponsors.

A full roll cage, tubular control arms, Nissan 240SX hubs, coilovers, and steering rack up front, and a hydraulic ebrake system along with some major weight reduction are planned.  There are no class rules in drifting [yet], so the sky is the limit.  It is all being done for fun and for the experience.  And as always its being done on a college student budget.

Budgeting

As of right now I have $18 to my name... so this might be difficult.  It doesn't hurt to plan.

Part Description/Plan $
Suspension
Sway Bars Maybe home made or S.T $335
Springs Ground Control "Coilover" things $249
Struts Tokico or KYB.. dunno yet. $300
Chassis
Roll Cage Full Cage ?
Racing Harnesses 4 point Simpson Harnesses Free
Racing Seats Something neat... might splurge for CF $500?
Radiator Hose Stock hoses with custom bent steels pipe Free
ABS Line Eliminating ABS - 30" metric threaded line $3
High Pressure Line Off of DSM used with double flared hardline $10
Low Pressure Line 100psi oil compatible oil hose... 5 feet Free
Motor
Donor 2.0 N/T or Turbo used for odds and ends like timing parts and DOHC head.
Donor 2.4 Bottom end only for crank, rods and block
Forged Pistons G4CS .02 over fancy pistons w/ rings $419
Eagle Rods/studs Might go with stock 1G "Big" Rods $359
ARP Hardware Studs and stuff $171
Gasket Set
Head Gasket Might just use one from gasket set $90
Timing Belt 4G64 Timing Belt $60
B.S. Eliminator Kit Still undecided.... would also need to bal. $42
Cams Stock Turbo cams or Aftermarket ??
Exhaust Manifold modified SS tubular manifold $218
Turbo Flange To mount my crazy big turbo $10
Turbo Crazy Big... 60-1?  GT35R? $1300
Braided Oil Line For the turbo oil line Matt?
Ext. Wastegate 35mm Tial (Sty knockoff) $120
Downpipe Flange T4 exhaust outlet? $10
Modified Intake Weld new flange onto front of manifold Free
ECU Standalone Engine Management $1000
Big Injectors 700-900cc $300
BOV Something decent $80
Heat Wrap/Tape 2" x 50' Thermotech wrap Free
IC Pipes 2.5 Mandrel Bent Pipes $40
Intercooler Something mammoth from a truck $400
Motor Mounts D50 Motor Mount brackets and bushings $5
Spark Plugs NGK BP6ES x 4 $5
Starter Starion Starter Free
Fuel Filter 300ZX fuel filter... high flowing with barbs $10
Oil Cooler Who Knows where I'm getting another!
Tranny
Tranny 88 or 89 Starion tranny $150ish
Short shifter Talk to BillTSG $120
Flywheel Stock 6 bolt Starion Flywheel:
Resurface, Lighten or go Aluminum
Free + ?
Clutch DXD 245mm Starion clutch $360
Slave Stock Starion Slave! Free

Total Wow... yeah.. that's alot of money for just the motor and tranny. ~$5,500


Wow!  Still cheaper than a STOCK SR20DET swap!  And this should easily make 600hp, 400ft/lbs.  I'm actually pretty sure I'm going to scale it down for $$ and transmission limitations.  Maybe with some sponsorships it could cost $3500 or so.  Plus I have stuff to sell.... Lots of stuff.


Crazy Plans

I have some interesting plans for this as it will be a Full 100% race car.  First off, the car is completely gutted.  We will be putting in the dash and very little trim or sound deadening.  I plan on running radiator lines through the tranny tunnel to the radiator located in the back seat.  Battery will be relocated too.  I plan on stripping down the chassis harness to the bare miniumum as well as moving all the relays inside the passenger compartment... I'll also be saying goodbye to the pop up mechanism for the lights.  Trying to make a low polar moment.  Dont want much weight outside of the wheel base.  The power steering pump will be moved to the intake side of the motor to lessen the amount of powersteering hose... plus it will make room for the top mount turbo.


The Goal
Spring '05 we expect to have a very potent, competitive and high profile drift car to be driven by either myself or Matt Martin.  Matt is the back to back Summit Point HypeRfest Drift Champion and consistent top 8 qualifier.  We are currently looking for sponsorship and are quickly putting together a media package for potential sponsors.
