Measurements

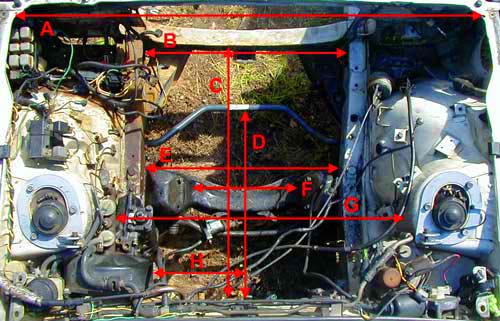

While the motor was out, I got the chance to measure the engine bay of the Starion since there is no motor in it. Lots of things are stripped out such as the battery and evaporative emissions things. The ABS is in the photo but will be removed as well. These measurements will hopefully help you decide if any motor you want to swap will fit.

	Description	Length
A	Engine bay in front of wheels	55"
B	Width between frame rails at front of bay	27"
C	Length of engine bay to radiator support	31"
D	Length from sway bar to firewall	22"
E	Width between frame rails at cross member	25.5"
F	Width of main depression in cross member	13"
G	Width between right strut tower and booster	32"
H	Distance of booster from center	10"
